CVEDIA-RT Plugin for Milestone XProtect - Configuration Guide ¶

This guide is designed for users responsible for configuring analytics settings, managing detection parameters, and setting up rules and alerts within the CVEDIA-RT plugin for Milestone XProtect.

Key Features ¶

Standard Security Features ¶

Detects people, vehicles, and animals within a variety of surveillance use cases.

Intrusion detection
Area enter/exit
Loitering
Object guarding
Object left behind
Crowding
Tailgating
Line crossing

Enhanced Appearance Search ¶

Advanced object classification is available for retrospective search and metadata filtering:

Vehicle: Door open, Lights On, License Plate (searchable), Color, Type
People: Gender, Wearing Glasses, Age, Using phone, Carrying bag, Smoking, Face covered, Requires assistance, Upper clothing color, Lower clothing color, Has Tattoo, Surrender pose
Animal: Species (bear, elephant, wolf, cat, dog, bird, deer)

Premium Features ¶

Specialized analytics that provide enhanced situation context and assist in identifying high-priority events.

Armed Person Intrusion
Fallen Person Detection (Slip & Fall)
ALPR (Automatic License Plate Recognition)

Analytics Configuration ¶

Once the initial setup is done, you can use the CVEDIA solution directly in XProtect Smart Client.

CVEDIA-RT analytics are available in all streams in your current view, and you can access the configuration menu by pressing the CVEDIA logo in the top right corner.

A new window will open, allowing you to configure analytics for the selected view. Detailed explanations of the available options and their functionalities are provided in the sections below.

Enable the Anlaytics on the camera to connect to a CVEDIA-RT Server and clicks "OK". Then open again the CVEDIA panel to check the license status.

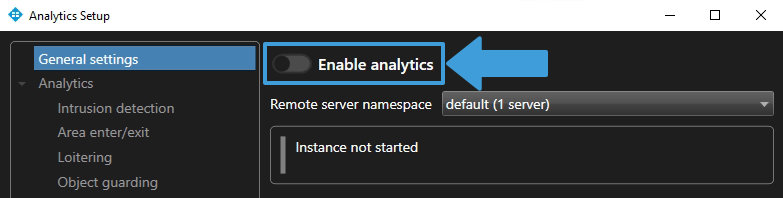

Enable Analytics

Known Issue

The error message "Cannot show bounding boxes. Check if computer time is correct" is a misleading message generated by the system, no action is necessary. Bounding boxes will be displayed correctly once the analytics are configured.

Different types of analytics allow you to configure one or more detection areas or lines, choose the types of objects to detect, and select additional related parameters.

Notes

Analytics are active only if at least one area or one line is defined, or when License Plate Recognition or Enhanced Search features are enabled.
Please note that you can enable multiple area or line based analytics at the same time. This will not impact the performance of the system.
Analytic events will be produced whenever a specified object class interacts with the configured zones and lines, or a license plate is detected in the camera's field of view.

Enhanced Search ¶

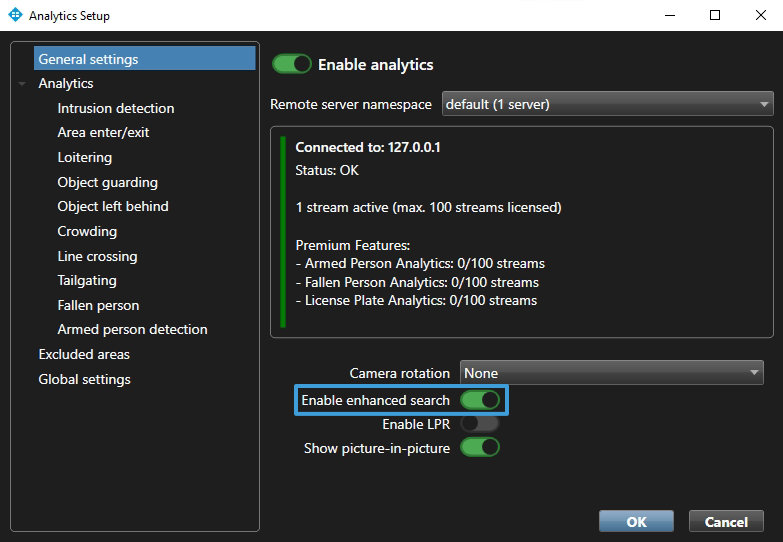

Enhanced Search feature allows users to leverage Smart Object Search within XProtect Smart Client to identify objects matching search parameters based on collected attributes. This feature simplifies the process of locating specific individuals or vehicles within extensive video archives.

For more information on how to use Enhanced Search, please refer to the Forensic Search by Appearance section.

Zone and Line Drawing Tool ¶

To define a zone of interest and configure the analytics, click on the stream's captured image to activate the zone drawing tool.

Stream Preview

Creating Zones (Polygons)¶

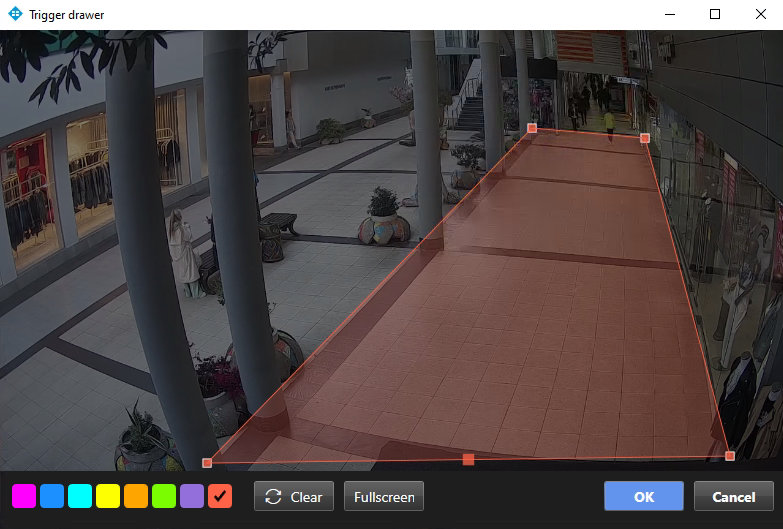

Click on the image to place points to outline the shape of the polygon. To complete the polygon, click on the starting point.

Use the full screen button to quickly create a full screen zone that covers the entire video frame.

Creating Zones

Creating Virtual Lines ¶

Click on the image to create points of the virtual line. To finalize the virtual line, click on the last point.

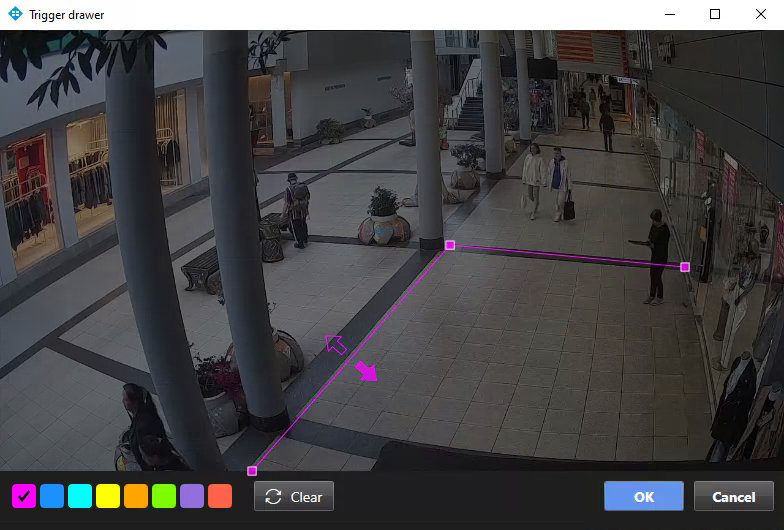

Creating Virtual Lines

Editing Zones and Virtual Lines ¶

After completing a zone or a line, you can move the entire shape or adjust individual points; add new points by clicking the middle markers on segment lines; remove points by right-clicking on them.

Intrusion Detection ¶

Detects objects that move inside a defined intrusion area. The event is triggered for any new target object (person, vehicle, animal) entering the area.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.

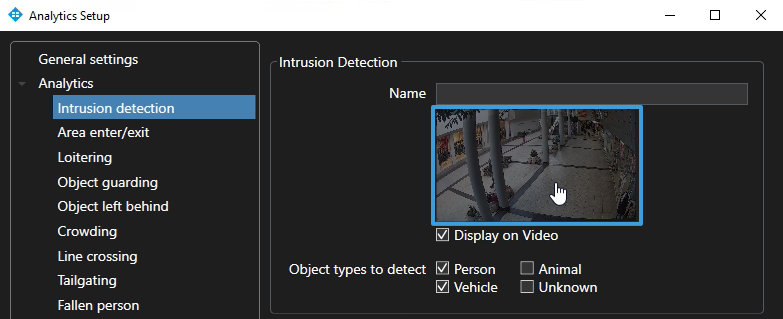

Click directly on the image under "New Trigger" to define the intrusion detection zone. Draw a custom polygon to encompass the area for intrusion detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Select the different Object Types (person, vehicle, animal, unknown) that you would like to detect within each defined area.
Additional zones can be defined by clicking "+ Add".

Area Enter/Exit ¶

Detects objects that enter/exit a defined area. This analytic can be employed to monitor objects detected in the area without triggering an intrusion event.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the detection zone. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Select the different Object Types (person, vehicle, animal, unknown) that you would like to detect within each defined area.
Select which event to trigger: Enter & Exit, Enter Only & Exit Only
Additional zones can be defined by clicking "+ Add".

Loitering Detection ¶

Detects objects that stay in the defined area longer than a specified time. An event will be triggered when a target object remains in the area for a duration of x seconds.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the detection zone. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Select the different Object Types (person, vehicle, animal, unknown) that you would like to detect within each defined area.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

Object Removed Detection ¶

Detection of objects being removed from a specified area, indicating potential theft.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the zone of interest. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

Object Left Detection ¶

Detection of objects being left in a specified area, indicating potential delivery or object abandonment.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the zone of interest. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

Crowding Detection ¶

Detects when the number of objects within a defined area at any given time reaches a set threshold. For instance, it could be a useful feature to detect a sudden increase of people in a queue in front of an ATM or in a commercial environment.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the detection zone. Draw a custom polygon to encompass the area of interest.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Select the different Object Types (person, vehicle, animal, unknown) that you would like to detect within each defined area.
Specify the minimum number of objects required to trigger an event.
Additional zones can be defined by clicking "+ Add".

Tailgating Detection ¶

The tailgating feature detects if more than one object crosses a virtual line during a predefined time interval. This feature could be useful for detection of multiple individuals or vehicles following each other in close proximity to gain access to a secured area.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the zone of interest. Draw a custom polygon to encompass the area for detection.
Click once to create new points of the line, then click on the last point to end it.
Define the direction of movement for object tracking. Click the Arrows to choose which direction you would like to use to trigger events
In the "Name" field, you can give a custom name to the virtual line.
Tick the "Display on Video" box to visualize the virtual line on the live video stream.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

Line Crossing ¶

Detects objects that cross a defined line. You have the option to create a multi-segment virtual line. This feature allows you to select the direction in which you intend to monitor the movement of objects.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image to create a virtual line.
Click once to create new points of the line, then click on the last point to end it.
Define the direction of movement for object tracking. Click the Arrows to choose which direction you would like to use to trigger events.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the virtual line on the live video stream.
Additional zones can be defined by clicking "+ Add".

Fallen Person Detection ¶

Detects individuals who have fallen within defined areas, signaling possible safety incidents.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.

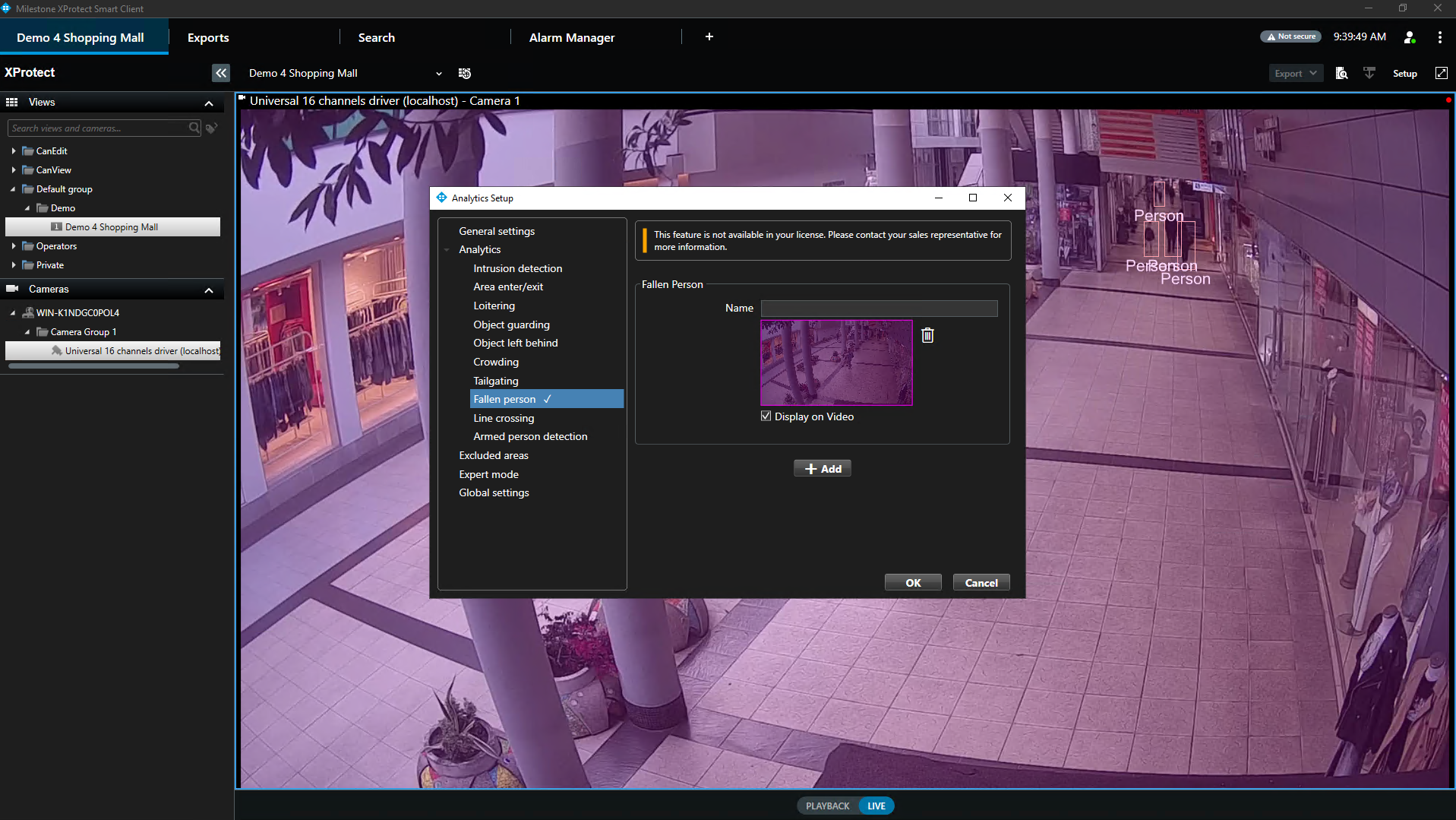

Click directly on the image under "New Trigger" to define the zone of interest. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

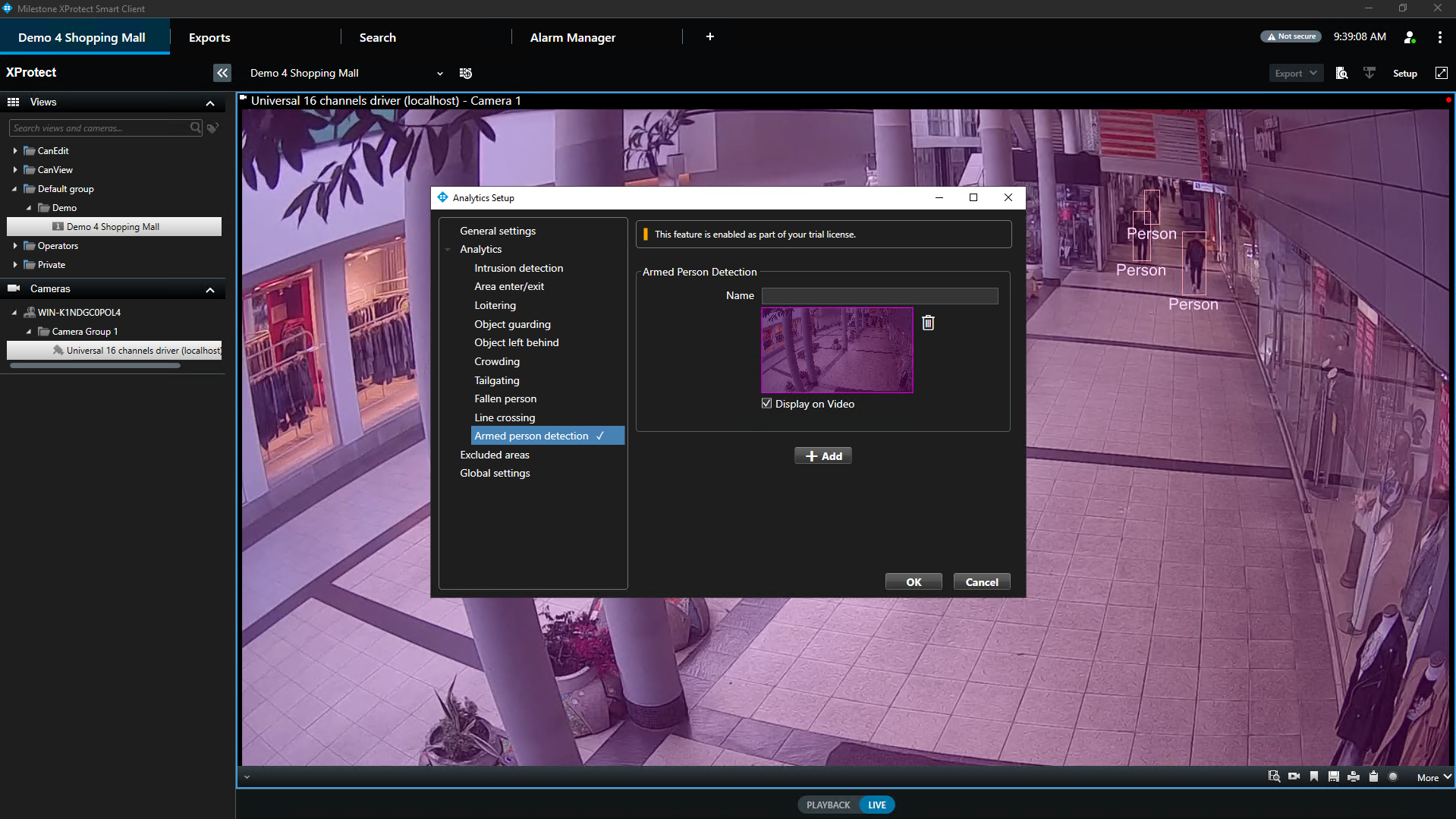

Armed Person Detection ¶

Detects individuals equipped with fire weapons that move inside a defined area, providing alerts for security action.

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.
Click directly on the image under "New Trigger" to define the zone of interest. Draw a custom polygon to encompass the area for detection.
In the "Name" field, you can give a custom name to the zone of interest.
Tick the "Display on Video" box to visualize the defined area on the live video stream.
Set the duration threshold for triggering events.
Additional zones can be defined by clicking "+ Add".

License Plate Recognition ¶

Records and translates license plates that enter the scene into searchable data using OCR for later analysis.

LPR Analytics

Configuration steps

Open XProtect Smart Client.
Click on the CVEDIA logo at the top right corner of a video stream.

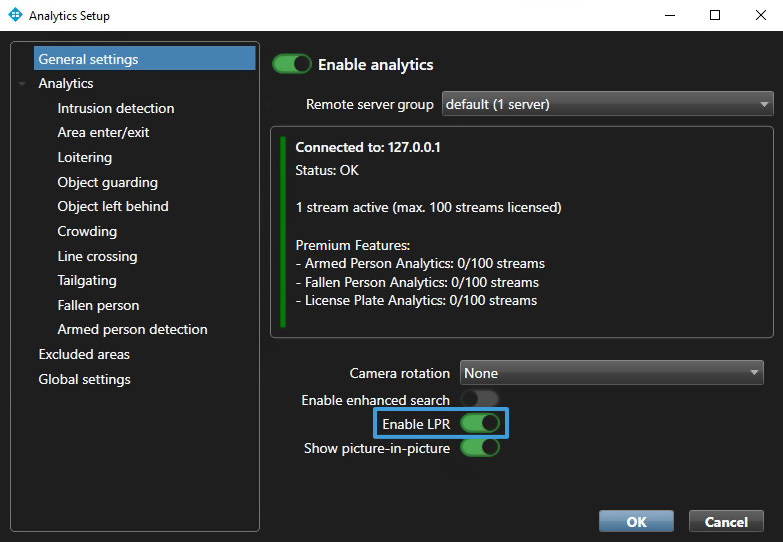

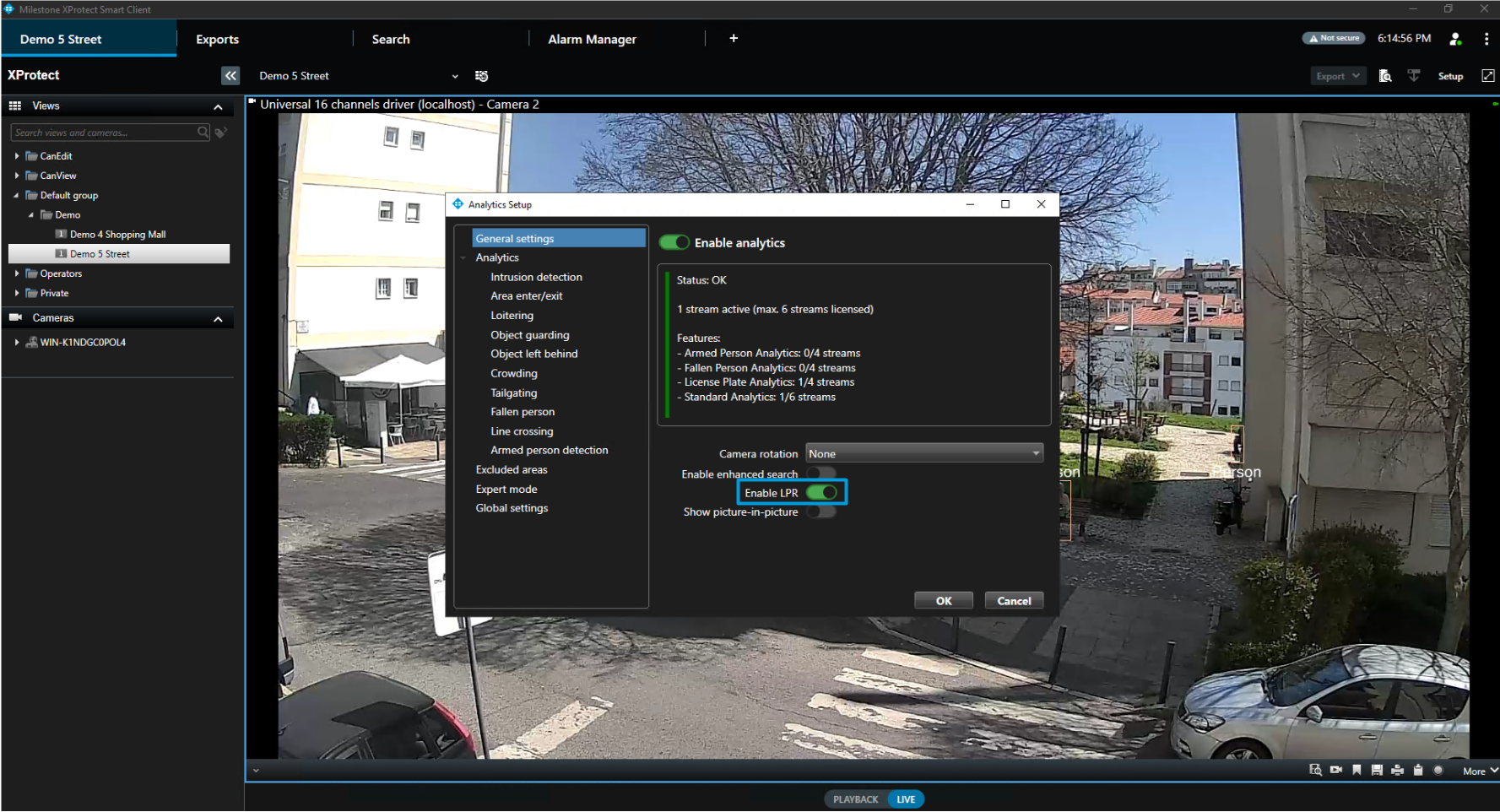

In the General Settings section activate the toggle for Enable LPR.

Additional Settings ¶

General Settings ¶

The main page of the analytics settings window contains the options that apply to all analytic scenarios for this camera stream.

Camera Rotation

The camera rotation feature lets users adjust the orientation of the stream to match the physical rotation of the camera (e.g., when the camera is installed at an angle or upside down).

Show Picture-in-picture

Displays a small overlay image (picture-in-picture) within the detection thumbnail to highlight important details such as faces or license plates. This ensures that key information stands out for quick identification.

Global Settings ¶

Global settings are applied universally to all channels where analytics are activated.

Global Settings

Profile Selection ¶

The Profile setting allows users to adjust the AI processing mode to best match the camera environment and available system resources. Selecting the right profile helps balance detection accuracy with computational efficiency.

Hi-Res Profile:

Default and recommended setting.
Unless overwritten in the Expert Settings, utilizes the camera stream closest to 2MP (about Full HD 1920x1080) resolution
Runs AI models with a larger input size, allowing for higher detection accuracy on crowded environments or distant targets.

Standard Profile:

Unless overwritten in the Expert Settings, utilizes the camera stream closest to 0.3MP (about VGA 640x480) resolution.
Provide optimal performance while maintaining high accuracy for typical security analytics.
Offers a balanced approach to system performance and detection precision.

Enable Statistics ¶

Displays detailed, real-time analytics information as an overlay in the top-left corner of the camera view.

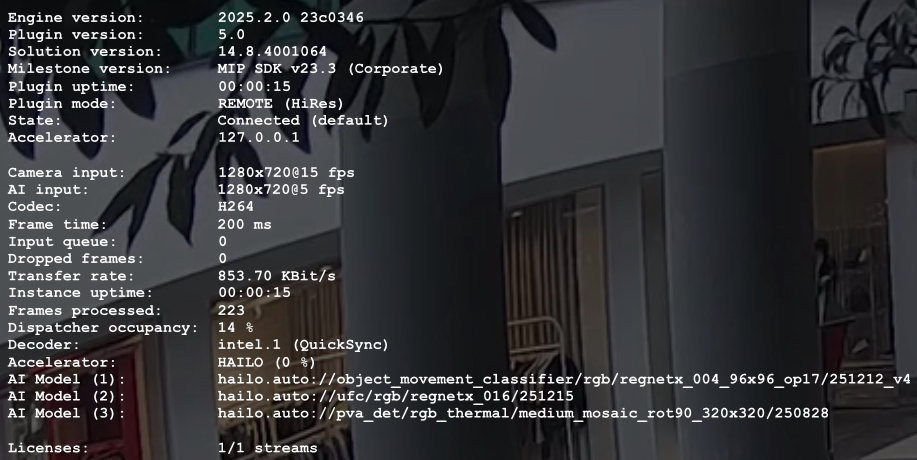

Statistics Overlay

This overlay can be useful for inspecting the performance of the analytics and ensuring that the system is functioning as expected.

Enable Expert Mode ¶

Reveals the Expert Mode menu in the left panel for advanced configuration.

Expert Mode Settings ¶

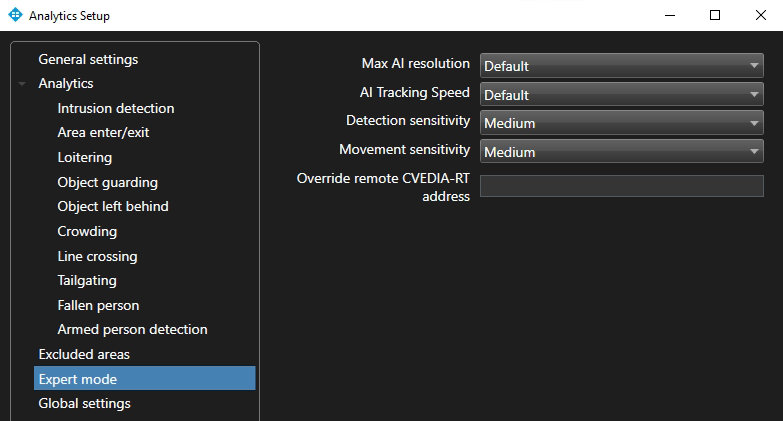

Expert Settings

Max AI Resolution ¶

The Max AI Resolution setting allows you to define the maximum resolution that the AI processes. By default, this value is determined by the profile specified in the Global Settings, but it can be adjusted to meet specific requirements.

If a resolution higher than the camera's native resolution is set, the plugin will automatically default to the camera's maximum supported resolution.
Increasing the resolution can improve the detection in crowded environments or of distant targets.

Important

Only increase the resolution if absolutely necessary, as higher resolutions may significantly impact system performance

AI Tracking Speed ¶

The AI Tracking speed feature enables users to adjust the frame rate at which the AI processes data.

Modifying this from the default setting may impact server performance and reduce the number of AI streams that can run simultaneously on the same device.

Default: 5 FPS - Optimized for most of the security surveillance use cases.

Fast: 10 FPS - Optimized for tracking faster moving targets (e.g. cyclists).

Very Fast: 15 FPS - Optimized for capturing targets that move very fast (e.g. electric scooters).

Choose the appropriate speed based on the tracking requirements and the server's capacity to handle the additional load.

An additional reason to increase the AI Tracking Speed is to improve the detection of very difficult targets that are clearly visible for only a few frames due to occlusions, lighting conditions, or compression artifacts.

Detection Sensitivity ¶

Increasing detection sensitivity improves the ability to detect challenging targets (e.g., smaller, occluded, or affected by lens noise) but may lead to more False Positives. Change "Detection Sensitivity" settings to "High" if the system misses events involving small objects or in busy scenes.

Movement Sensitivity ¶

The Movement Sensitivity setting determines how the system detects motion within the camera's view. This setting can be adjusted to account for environmental factors such as rain, snow, camera noise, or light reflections, which might trigger false motion detections.

Low Sensitivity:

Reduces false motion detections caused by environmental conditions.
Suitable for minimizing noise in challenging environments.

High Sensitivity:

Improves detection of fast-moving objects or objects that are visible for only a short duration.
May increase False Positives under certain environmental conditions.

Creating Rules and Alerts ¶

Using the XProtect Management Client, you can configure new rules and alerts triggered by CVEDIA-RT Analytic Events.

For detailed information on configuring specific rules and alert actions in Milestone XProtect, please refer to the Milestone XProtect documentation or consult with your Milestone system administrator.
